Diameter på extrudercylinder

Inspektion av extrudercylinderns innerdiameter

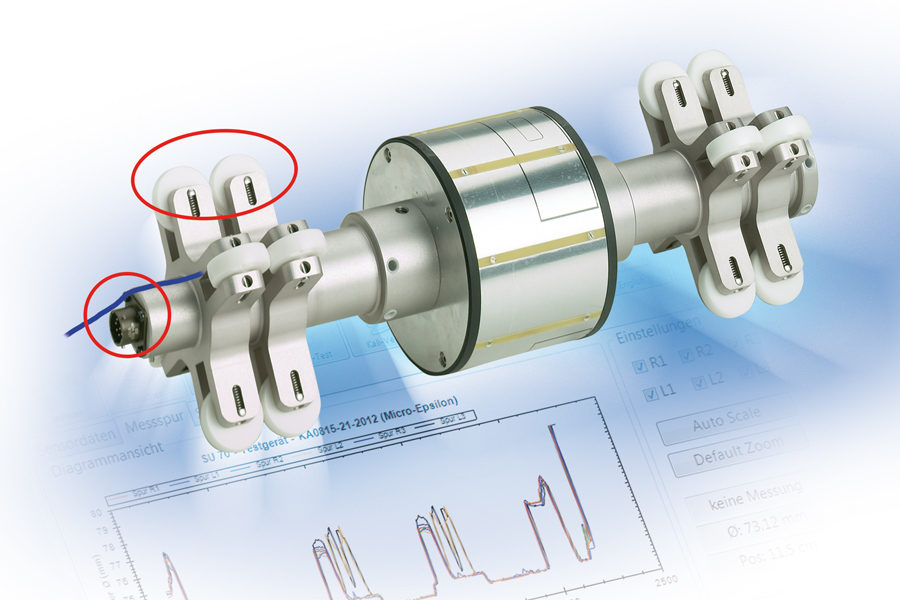

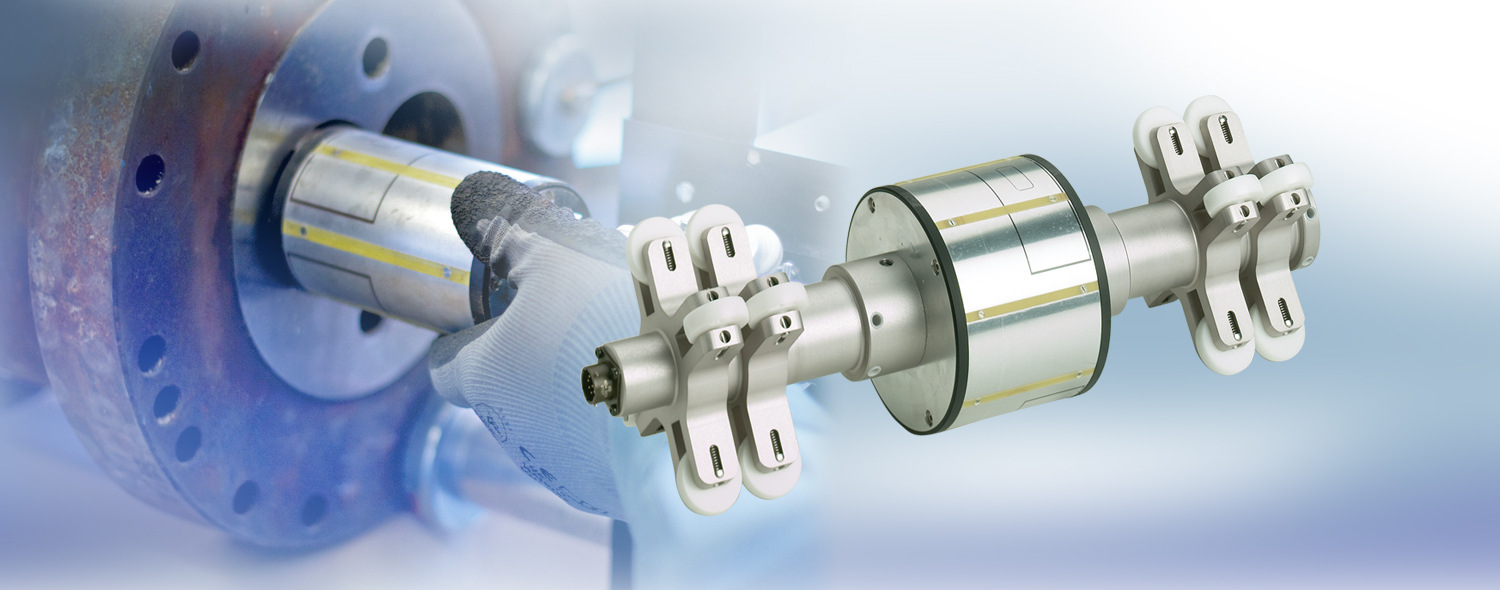

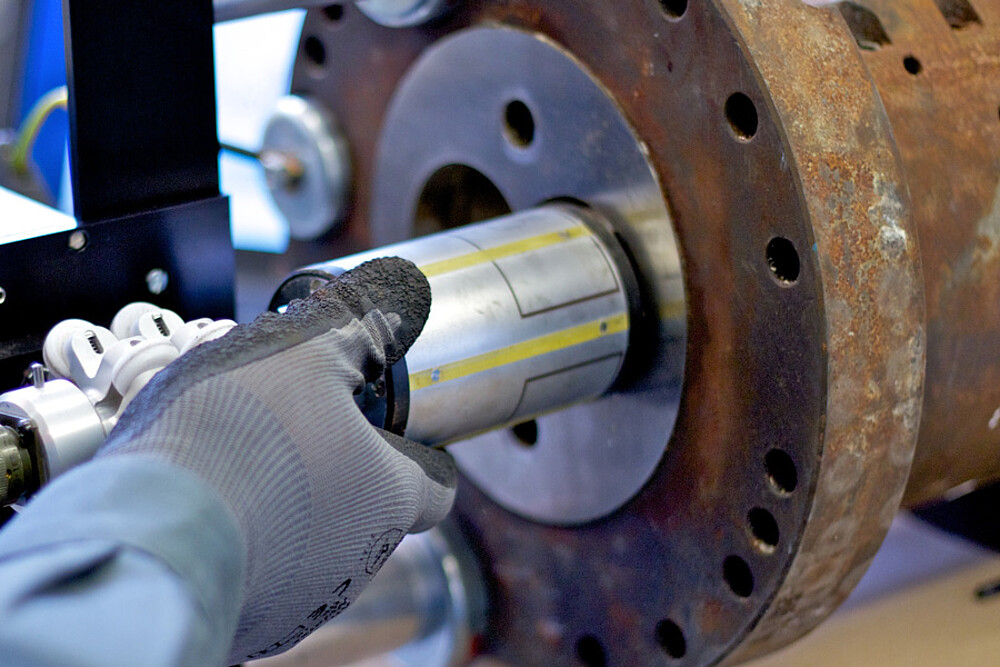

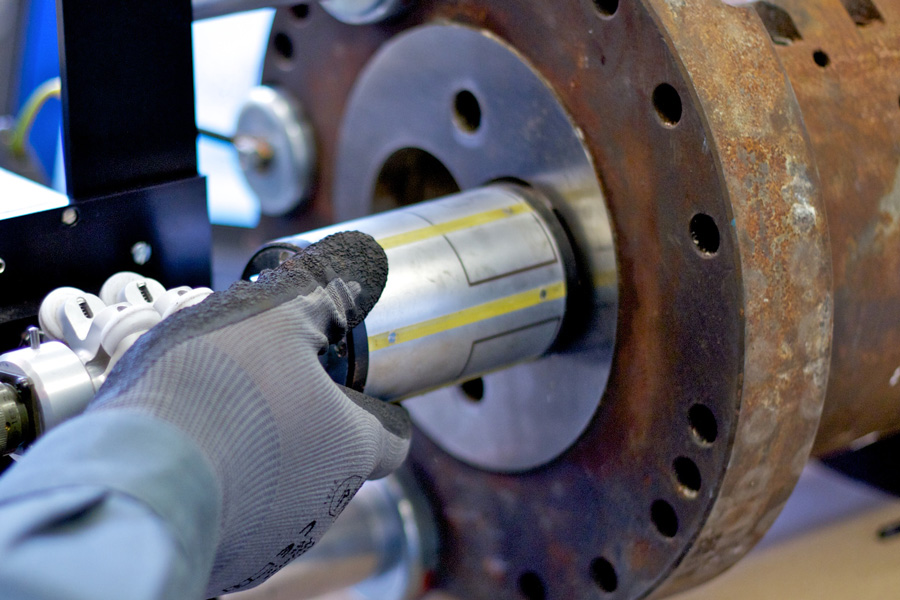

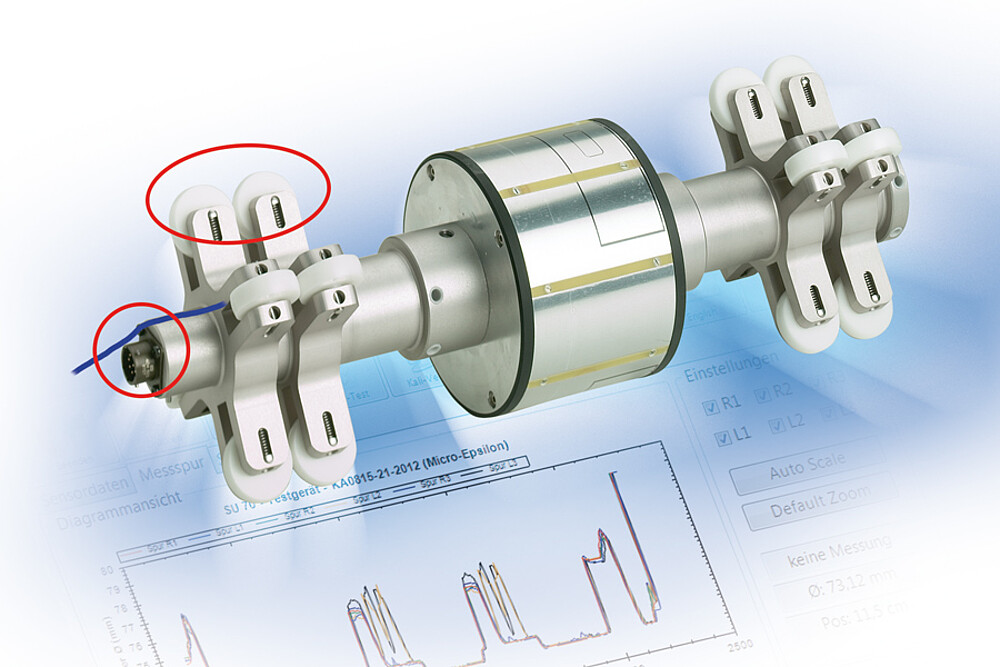

Sensorsystemet idiamCONTROL mäter innerdiametern i borrhål exakt, exempelvis i extruders för att fastställa slitaget. idiamCONTROL styrs in i borrhålet och bestämmer borrhålsdiametern medan den dras ut. Toleransöverträdelser visas automatiskt och kan matas ut via USB.

logo

Advantages

  1. Touchscreen with user-friendly software for fast evaluation directly next to the extruder
  2. Reliable measurement on up to 6 tracks
  3. Suitable for numerous extruder barrel dimensions from 32 to 180 mm diameter
  4. Diameter is directly displayed
  5. Automatic evaluation function via tolerance specifications
  6. USB interface for data output and logging
  7. Integrated function test for inspecting the condition of the measuring system
[]
Kontakt
MICRO-EPSILON SENSOTEST AB
kontakt formulär
Georgios Mousiadis
kontakt formulär
Rickard Edvardsson
kontakt formulär
Jakob Geisler
kontakt formulär
Din begäran om: {product}
Please enter the result of the calculation below. This will avoid spam.
captcha
* Obligatoriska fält
Vi behandlar dina uppgifter konfidentiellt. Läs vår integritetspolicy.

Operating principle

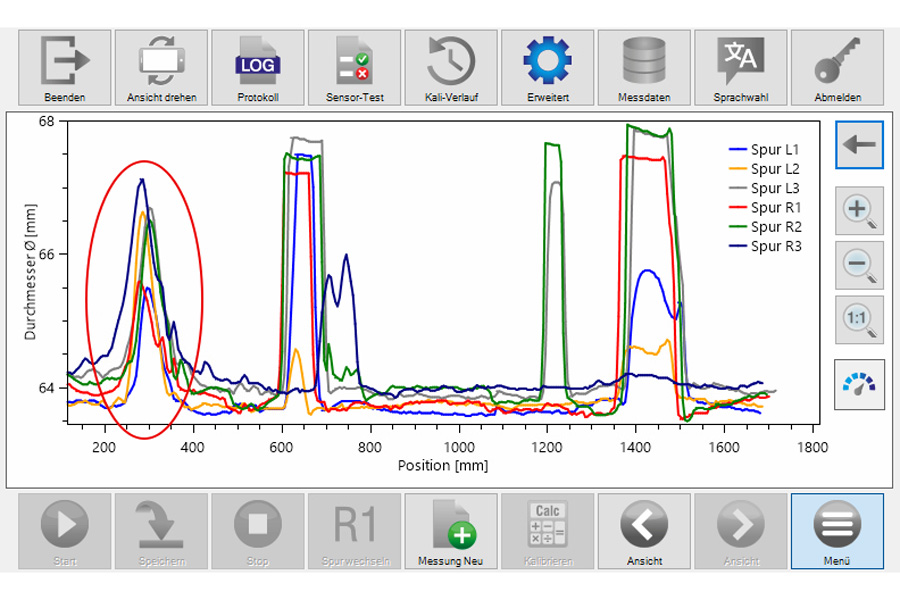

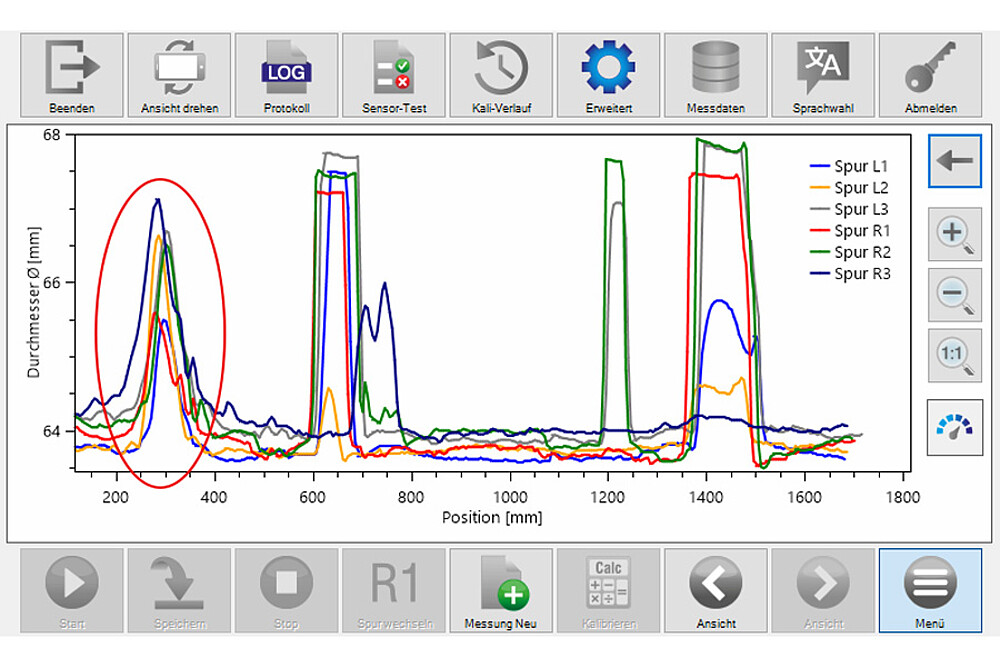

The idiamCONTROL works with integrated capacitive displacement sensors. These measure the actual bore diameter over the whole length of the process part. As the axial sensor position is detected as well using a cable-length measuring system, deviations in diameter can be found quickly and reliably. In doing so, each sensor position is related to a diameter in the longitudinal axis of the bore hole. As a result, the diameter length profiles are provided in six tracks and with a spatial resolution of 1 mm. The wear is calculated from the respective diameter values using the evaluation software.
