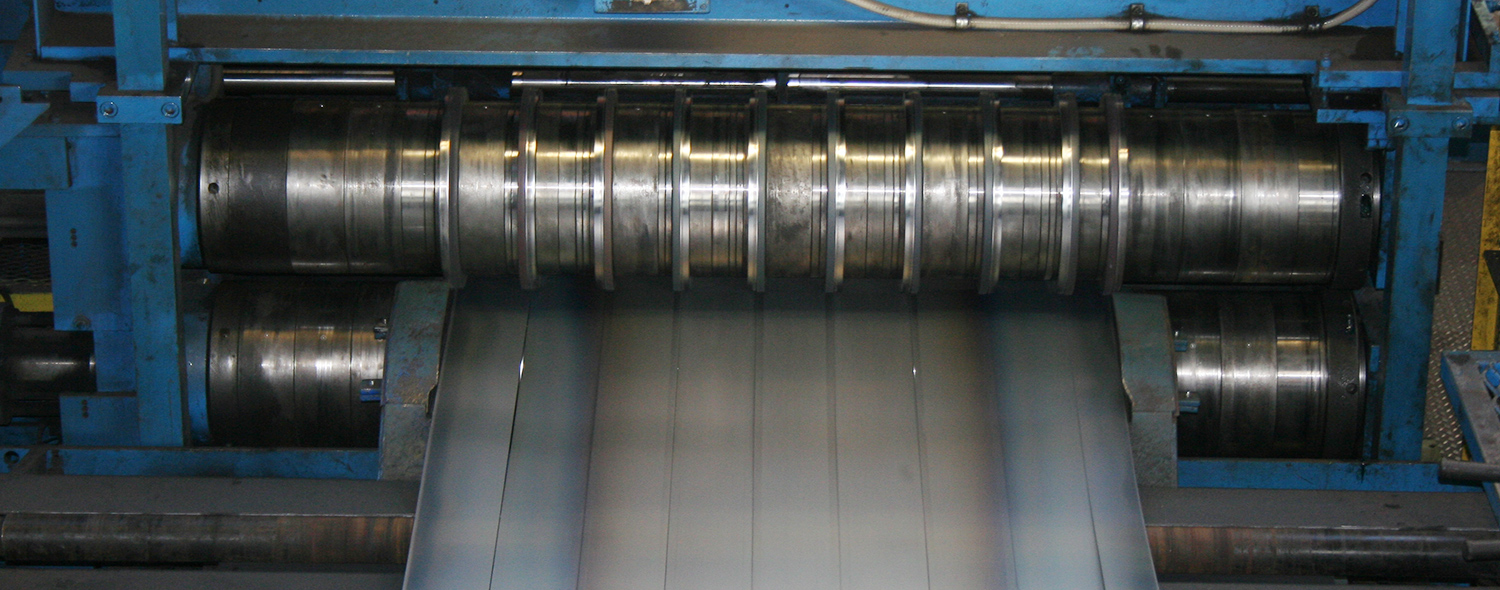

Service centers and cutting lines

In cutting lines such as slitting shears and cut-to-length shears, final quality control of the material to be supplied is an advantage. In addition to deciding whether the cut sheet or cut ring meets the requirements, the measuring systems from Micro-Epsilon also allow complete documentation and logging of the production.

One of the advantages of the C- and O-frame measuring systems of the thicknessCONTROL MTS 8201/8202 series becomes particularly clear in this area. The high lateral resolution of discrete laser lines enables both thickness measurements as well as width and cambering detection.

logo

Detaljer

  1. Geometrical measurement not influenced by the material
  2. Fully automatic calibration
  3. Detection and compensation of tilt
  4. High lateral resolution enables combined thickness and width measurement
  5. Detection of the individual strips in slitting shears
  6. Comprehensive analysis software with numerous diagrams for cross profiles, longitudinal profiles, SPC analysis and false color display
  7. O-frame design, in contrast to the C-frame, requires hardly any space next to the strip processing line
[]
Kontakt
MICRO-EPSILON SENSOTEST AB
kontakt formulär
Din begäran om: {product}
* Obligatoriska fält
Vi behandlar dina uppgifter konfidentiellt. Läs vår integritetspolicy.

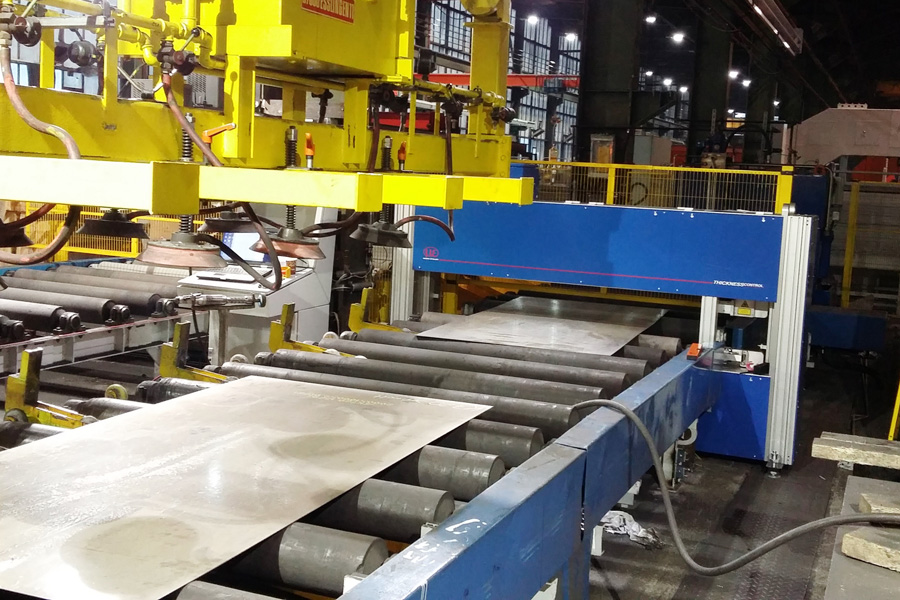

3-track thickness measurement after slitting with thicknessCONTROL MTS 8201.LLT O-frame system

Thanks to a flexible mechanical concept, O-frames can be equipped with a different number of thickness measurement channels. This allows a wide variety of measurement modes to be implemented.

  • Traversing thickness profile measurement with one measuring channel and virtual longitudinal profiles
  • Thickness measurement at the edge and in the center along the sheet with 3 thickness measurement channels
  • Thickness measurement at the edge and in the center of the sheet and additional thickness profile measurement with 4 thickness measurement channels
  • Up to 3000 mm with O-frame
  • Independent of surface, material and alloy
